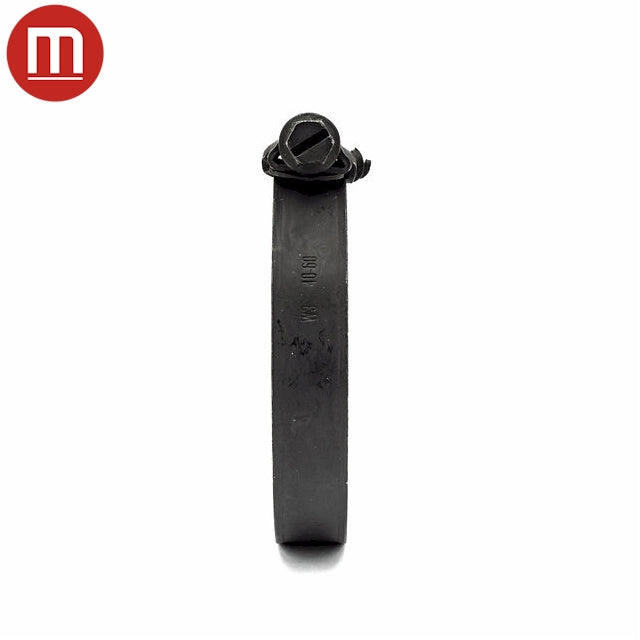

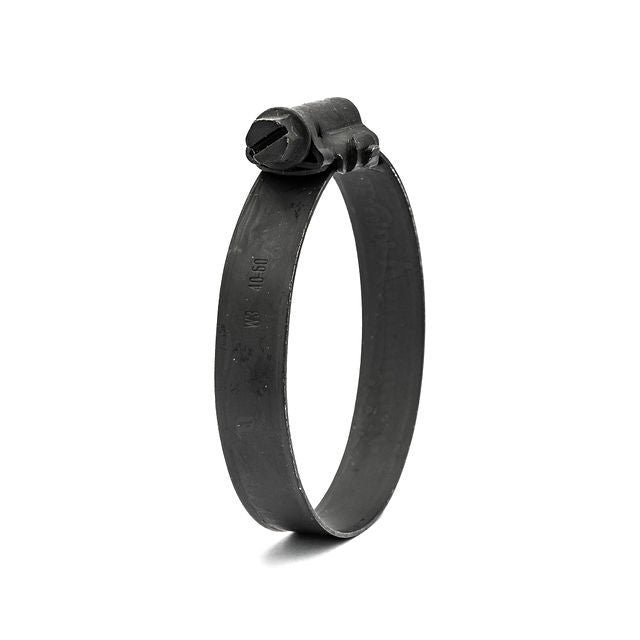

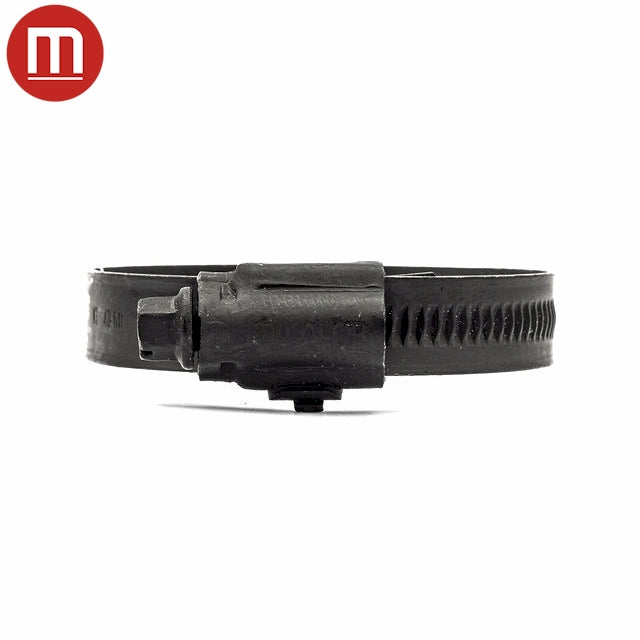

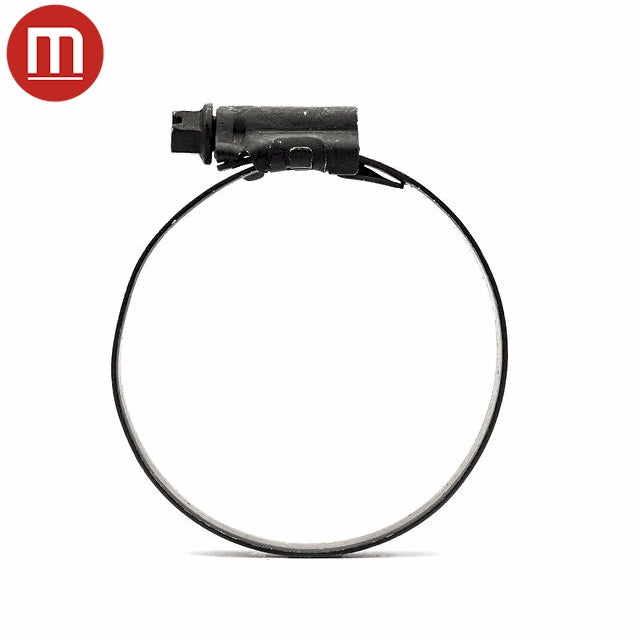

This clamp is manufactured in AISI 430 with an additional matt-black surface treatment which increases its corrosion resistance. Thanks to the surface treatment this clamp can be mounted discreetly in any application, making it a favorite in automotive or motorcycle applications. The geometry, band, stamping, housing and screw are identical to other ASFA clamps, meaning that the performance is not altered in any way. DIN 3017. The Black ASFA LW3 hose clip complies fully with the DIN 3017 norm and also with the directive EU 2002/95/EC.
* The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling.
- Diameter Range (A) mm30.0 - 45.0
- Diameter Range (A) inch1.18 - 1.77
- Band Width (B) mm - inch9.0 - 0.35
- Band Thickness (C) mm - inch9.0 - 0.030
- Head Height (F) mm - inch10.5 - 0.41
- Maximum Torque Setting Nm4.0
- Maximum Pressure bars28.0
- Screw mm A/F7.0
- Max Tightening Speed RPM540 ±5
- FinishDELTA SEAL BLACK
- Corrosion250 HOURS SALT SPRAY (ASTM B-117)
- Band/Housing Material STAINLESS STEEL (DIN 1.4016) AISI-430
- Screw Material STAINLESS STEEL (DIN 1.4016) AISI-430
- Brand ASFA
- Manufactured By Mikalor
- Manufactured According toDIN3017
- Country of ManufactureSpain
- Hazardous Goods No
- RoHS Compliant Yes
- Manufactured to DIN3017 Standard
- Smooth Underside
- Bevelled Edges Protect Hose
- Exclusive Housing Design
