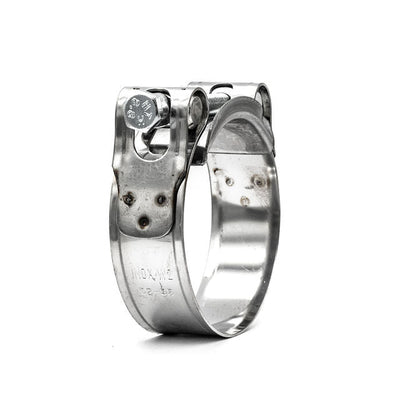

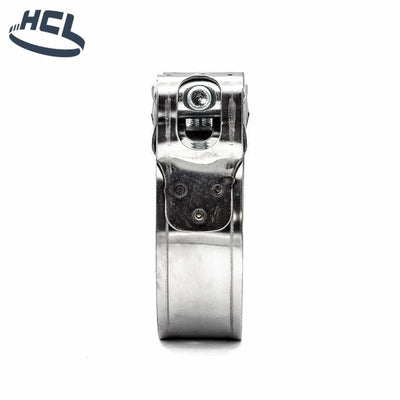

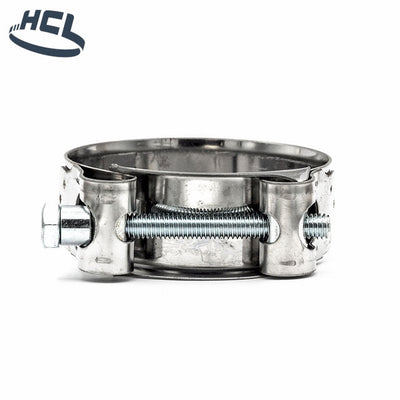

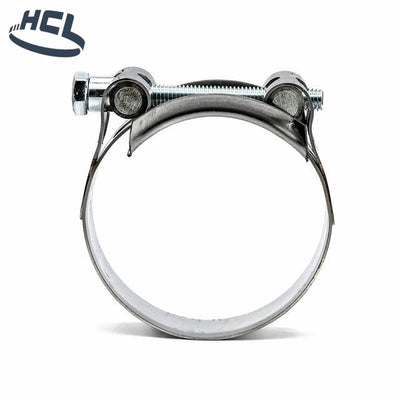

HCL’s Heavy Duty Bolt & Barrel Hose Clamps are manufactured to the highest standard. These Hydraulic Hose Clips are designed for high performance applications, such as the sealing of suction and pressure hoses. The band has a smooth underside and bevelled edges, protecting the hose from damage. The bolt is directly engaged in the barrel and can be fastened with an electric or pneumatic tool.
- Diameter Range (A) mm52.0 - 55.0
- Diameter Range (A) inch2.05 - 2.17
- Band Width (B) mm - inch21.0 - 0.83
- Band Thickness (C) mm - inch0.8 - 0.031
- Hex Screw length mm - inch60.0 - 2.36
- Maximum Torque Setting Nm10.4
- Screw mm A/F10.0
- Band/Housing Material W2 430SS
- Bolt Material W1 Mild Zinc Plated Steel
- Hazardous Goods No
- RoHS Compliant Yes
- Double reinforced loop creates higher strength
- Coupling of bolt and spacer allows fastening with electric and pneumatic drivers
- Three point welding guarantees sealing of the clamp
- rounded edges prevent any damage to the hoses
