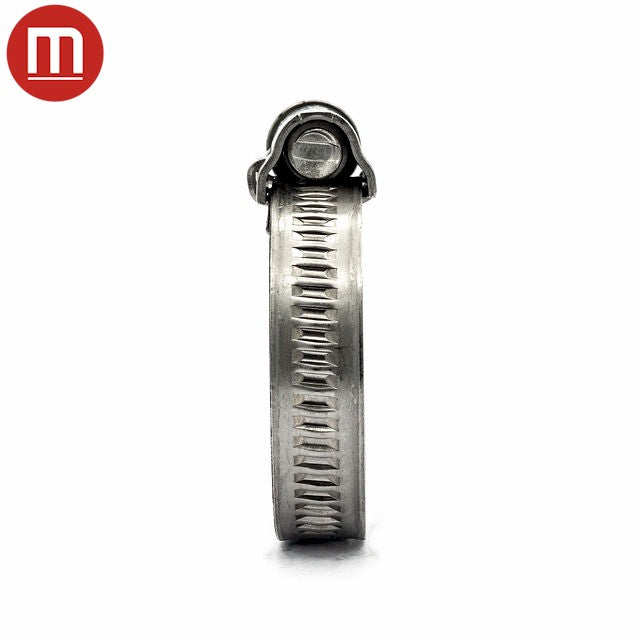

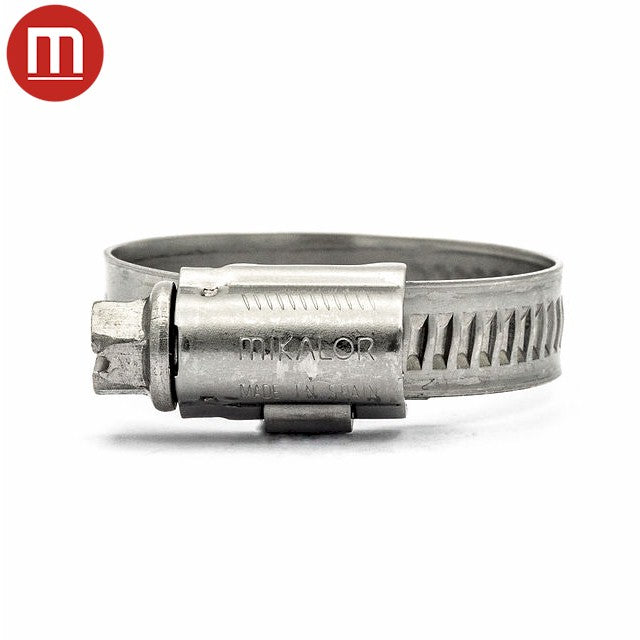

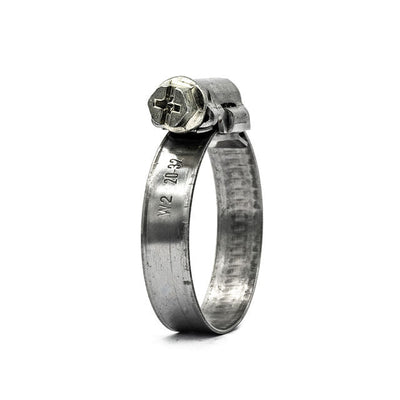

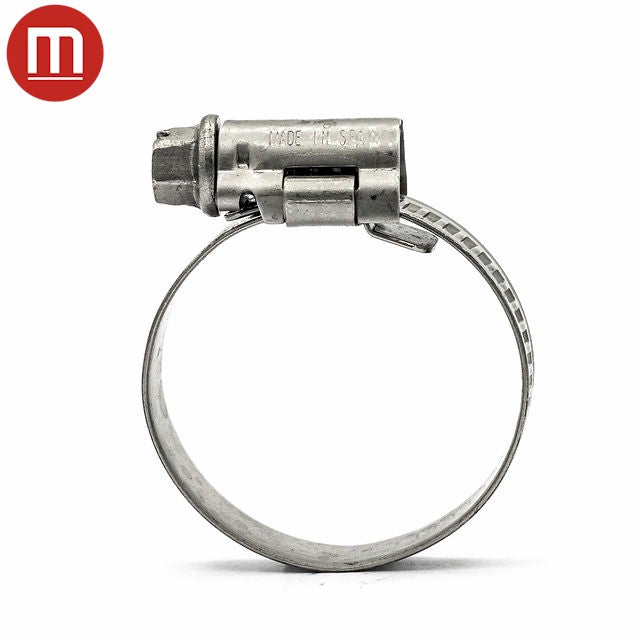

Mikalor ASFA L W3 430SS - Width 9mm Dia 130-150mm

£1.67 + VAT
0 items in stock


Thanks to the exclusive design of the housing and the high-strength screw, the ASFA LW3 hose clip has excellent performance while being at the same time very compact.

The cold-formed stamped 9mm band, smoothed on the underside, combined with the bevelled band edges protects the hose from any damage. This clamp is especially indicated for use in the automotive sector. DIN 3017. The ASFA LW3 hose clip complies fully with the DIN 3017 norm and also with the directive EU 2002/95/EC.

* The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling.


Product Specifications

  • Diameter Range (A) mm130.0 - 150.0
  • Diameter Range (A) inch5.12 - 5.91
  • Band Width (B) mm - inch9.0 - 0.35
  • Band Thickness (C) mm - inch0.75 - 0.030
  • Max Head Width mm - inch14.0 - 0.552
  • Band/Housing Material 430SS W3
  • Bolt Material 304SS W4
  • Max Torque (Nm) - 4
  • Max Torque (Bars) - 6
  • Manufactured By Mikalor
  • Hazardous Goods No
  • RoHS Compliant Yes


  • Cost effective
  • Highly suited to Automotive Industry
  • Corrosion resistant
Mikalor 03016188
