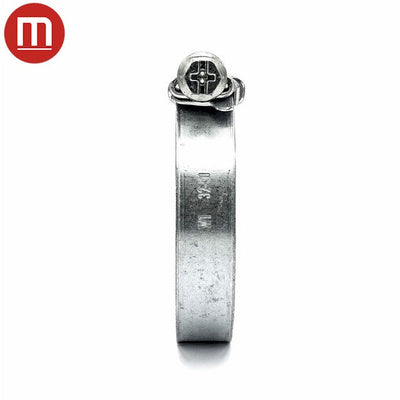

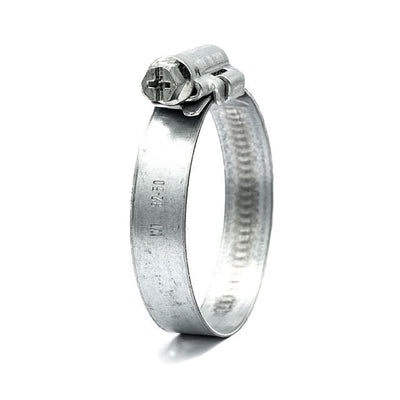

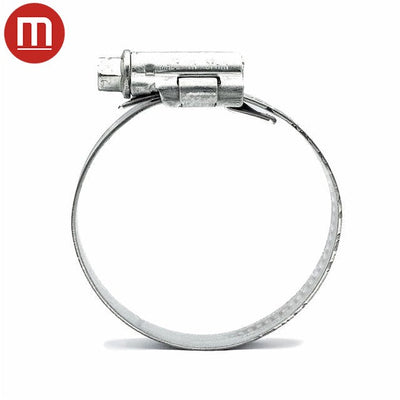

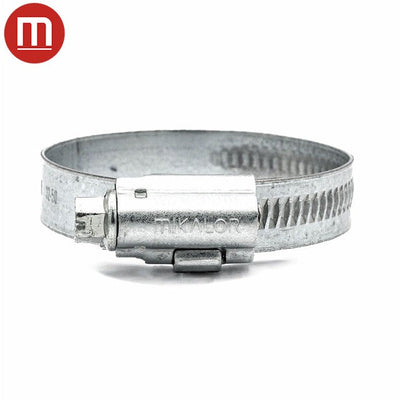

Mikalor ASFA S W1 Zinc Plated - Width 12mm Dia 150-170mm

£1.67 + VAT
25 items in stock


This clamp represents the latest stage in the evolution of the ASFA 12mm range. One of the main developments in this version is the lateral displacement of the band thread, which reduces the tendency of the band end to exit the housing off-centre when tightened.

Thanks to the combination of the housing, locking system and the location of the screw within the housing, this clamp offers superior performance at the same torque ratings. Specially recommended for industrial applications.

DIN 3017. The ASFA SW1 hose clip complies fully with the DIN 3017 norm and also with the directive EU 2002/95/EC.

* The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling.


Product Specifications

  • Diameter Range (A) mm150.0 - 170.0
  • Diameter Range (A) inch5.91 - 6.70
  • Band Width (B) mm - inch12.0 - 0.47
  • Band Thickness (C) mm - inch0.85 - 0.033
  • Max Head Width mm - inch16.7 - 0.658
  • Band/Housing Material Zinc Plated Steel
  • Bolt Material Zinc Plated Steel
  • Max Torque (Nm) - 7
  • Max Torque (Bars) - 4
  • Manufactured By Mikalor
  • Hazardous Goods No
  • RoHS Compliant Yes


  • Exclusive Housing Design
  • Cost Effective
  • Bevelled Band Edges
Mikalor 03009017

Mikalor ASFA S W1 Zinc Plated - Width 12mm Dia 150-170mm

£2.00 (£1.67 + VAT)
25 items in stock.
