MikalorMikalor
SKU: MIK-ASFA-S-W3-160

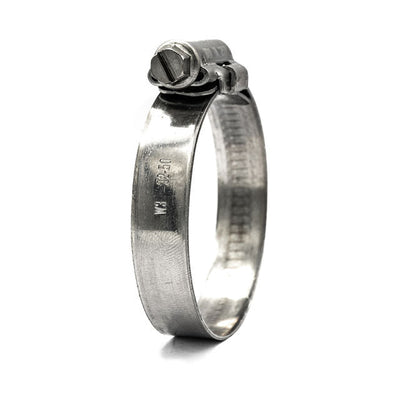

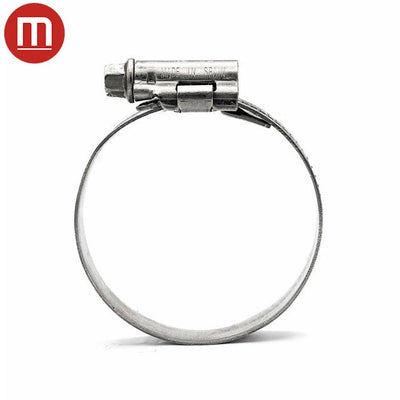

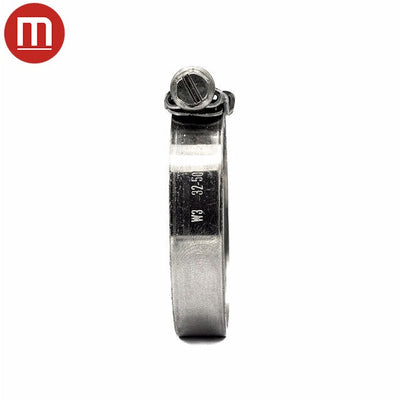

Mikalor ASFA S W3 430SS - Width 12mm Dia 140-160mm


Price:
£2.39 + VAT
Stock:
15 items in stock

Description

This clamp represents the latest stage in the evolution of the ASFA 12mm range. One of the main developments in this version is the lateral displacement of the band thread, which reduces the tendency of the band end to exit the housing off-centre when tightened.

Thanks to the combination of the housing, locking system and the location of the screw within the housing, this clamp offers superior performance at the same torque ratings. Specially recommended for industrial applications.

DIN 3017. The ASFA SW3 hose clip complies fully with the DIN 3017 norm and also with the directive EU 2002/95/EC.

* The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling.

Video

Product Specifications

  • Diameter Range (A) mm140.0 - 160.0
  • Diameter Range (A) inch5.52 - 6.30
  • Band Width (B) mm - inch12.0 - 0.47
  • Band Thickness (C) mm - inch0.85 - 0.033
  • Max Head Width mm - inch16.7 - 0.658
  • Band/Housing Material 430SS W3
  • Bolt Material 304SS W4
  • Max Torque (Nm) - 7
  • Max Torque (Bars) - 5
  • Manufactured By Mikalor
  • Hazardous Goods No
  • RoHS Compliant Yes

Features

  • Cost effective
  • Highly suited to Automotive Industry
  • Corrosion resistant
Mikalor 03016356
