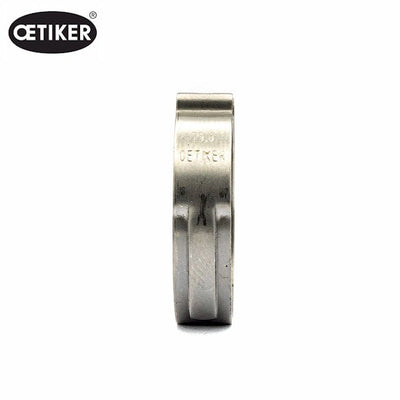

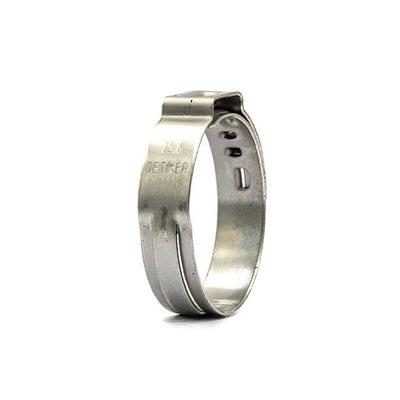

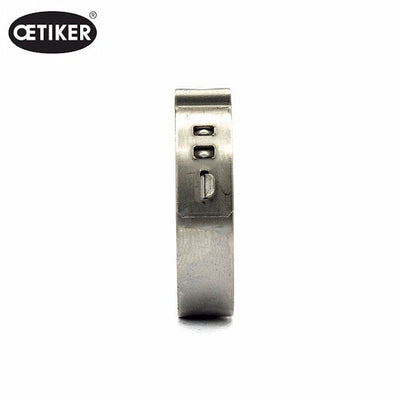

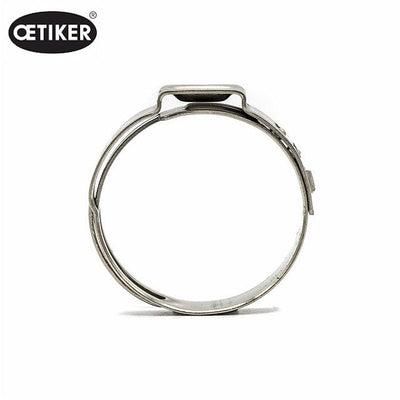

The Oetiker Stepless narrow band concentrates the transmission of clamping force into a uniform compression and surface pressure. The clamp ear compensates for component intolerances with adjustable surface pressure whilst the dimple increases the clamping force with a spring-effect compensating for changes in diameter caused by thermal expansion. The specially formed strip edges reduce risk of damage to clamped parts.
- Minimum Diameter (A) mm - inch5.3 - 0.21
- Maximum Diameter (A) mm - inch6.5 - 0.26
- Band Width (B) mm - inch5.0 - 0.20
- Band Thickness (C) mm - inch0.5 - 0.02
- Band Material 304 Stainless Steel
- Hazardous Goods No
- RoHS Compliant Yes
- Manufactured to DIN3017 Standard
- Smooth Underside
- Bevelled Edges Protect Hose
- Exclusive Housing Design
Compound Action Side Jaw Clamp Pincer - Part Number 497
A special set of pliers for fitting Ear, Pinch, O-ring style Oetiker hose clips. Soft grip, angled handle for added leverage. Part number 497.
Compound Action Side Jaw Ear Clamp Pincer - Part Number 499
A special set of pliers for fitting Ear, Pinch, O-ring style Oetiker hose clips. Soft grip, angled handle for added leverage. Part number 499.
Hand Clamp Cutter - Part Number 516
A special set of cutters for removing Oetiker Ear Clamps. Soft grip, angled handle for added leverage. Part number 516.
