Description

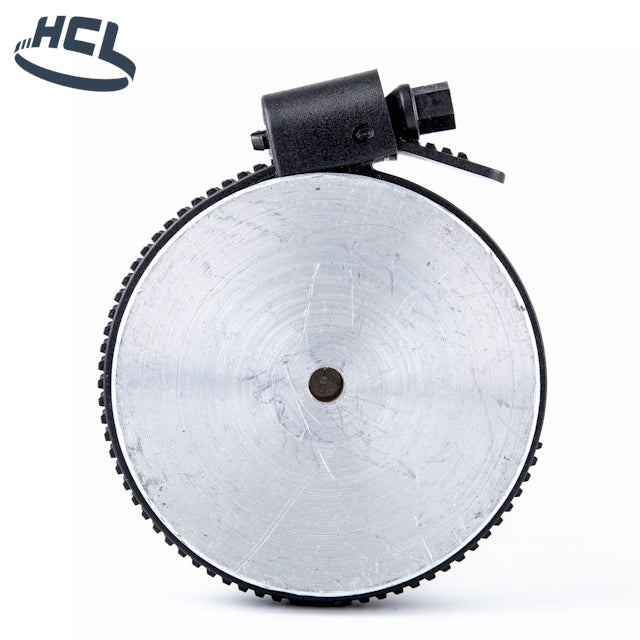

Designed and manufactured by HCL to the highest quality the Ezyclamp™ is a highly versatile Nylon Worm Drive Hose Clamp. The Ezyclamp™ is 12.7mm (½”) wide and available in 5 sizes covering a diameter range of 25mm (1”) to 150mm (6”). It is offered in a choice of materials: PA66 (Nylon 6.6.) for standard applications & PA12 (Nylon 12) for niche markets such as 5G telecommunications & Subsea.

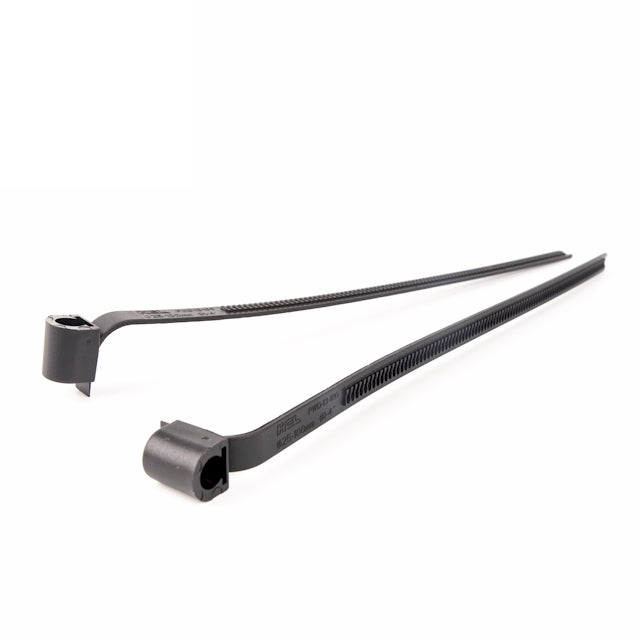

Please be aware this is the strap part of the unit and either a screw or wing screw part will need to be purchased to complete the unit.
Downloads
Product Specifications
- Strap Length mm - inch 198 - 7.80

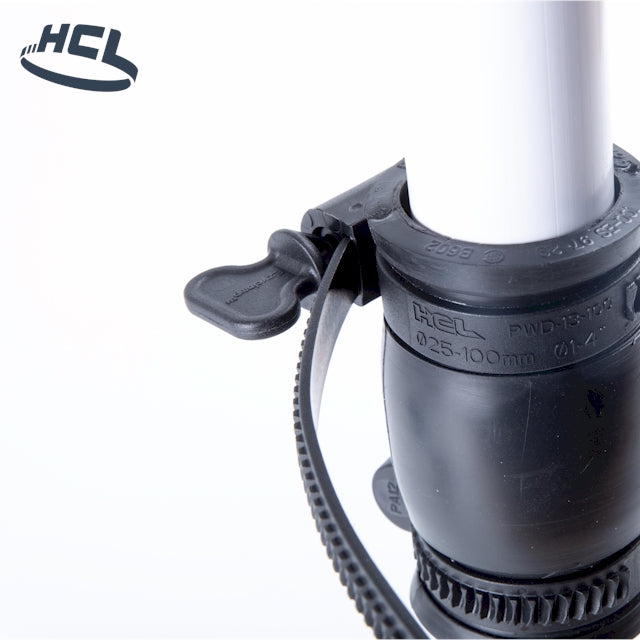

- Can be used with-PA66 8mm Hex Screw or PA66 Wing
- Diameter Range (A) mm25.0 - 50.0
- Diameter Range (A) inch1.0 - 2.0
- Band Width (B) mm - inch12.7 - 0.50
- Band Thickness (C) mm - inch3.3 - 0.13
- Clamp Material - Nylon 6.6
- Flammability UL 94 V-2
- Max long term operating temp125°C - 255°F
- Max peak operating temp170°C - 340°F
- Brand Ezyclamp
- Manufactured By HCL Fasteners
- Country of ManufactureUnited Kingdom
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Manufactured to DIN3017 Standard
- Smooth Underside
- Bevelled Edges Protect Hose
- Exclusive Housing Design
