OetikerOetiker
SKU: STEPLESS-17.8-21.0-304SS

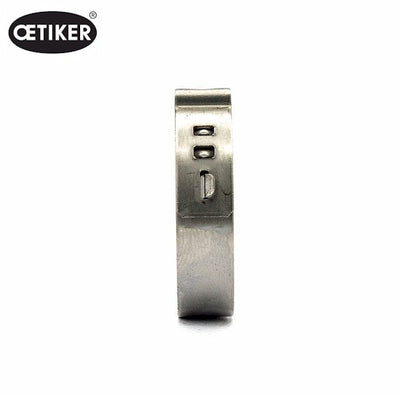

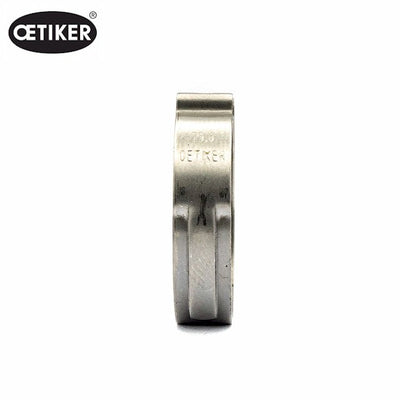

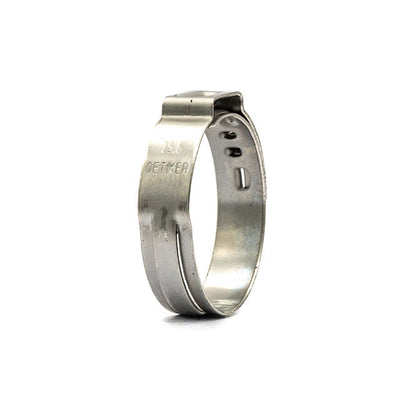

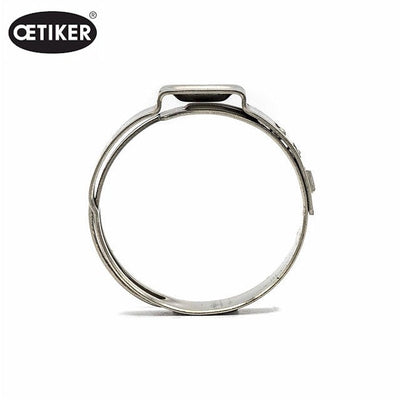

Oetiker Stepless Ear Clamp-W:7mm-Dia 17.8-21.0mm 304SS


Price:
£0.62 + VAT
Stock:
2281 items in stock

Description

The Oetiker Stepless narrow band concentrates the transmission of clamping force into a uniform compression and surface pressure. The clamp ear compensates for component intolerances with adjustable surface pressure whilst the dimple increases the clamping force with a spring-effect compensating for changes in diameter caused by thermal expansion. The specially formed strip edges reduce risk of damage to clamped parts.

Video

Product Specifications

  • Manimum Diameter (A) mm - inch17.80 - 0.70
  • Maximum Diameter (A) mm - inch21.0 - 0.83
  • Band Width (B) mm - inch7.0 - 0.28
  • Band Thickness (C) mm - inch0.6 - 0.02
  • Band Material 304 Stainless Steel
  • Hazardous Goods No
  • RoHS Compliant Yes

Features

  • Manufactured to DIN3017 Standard
  • Smooth Underside
  • Bevelled Edges Protect Hose
  • Exclusive Housing Design
Oetiker 16700024
SKU: STEPLESS-17.8-21.0-304SS

Oetiker Stepless Ear Clamp-W:7mm-Dia 17.8-21.0mm 304SS


Price:
£0.74 (£0.62 + VAT)
Stock:
2281 items in stock.
