HCLHCL 5033717001423
SKU: SP-300-PA12

Smart Protector 300 - Cable Protector & Holder - PA12


Price:
£5.34 + VAT
Stock:
272 items in stock

Description

A range of polymer cable protectors for use in Downhole, subsea and flow line applications.

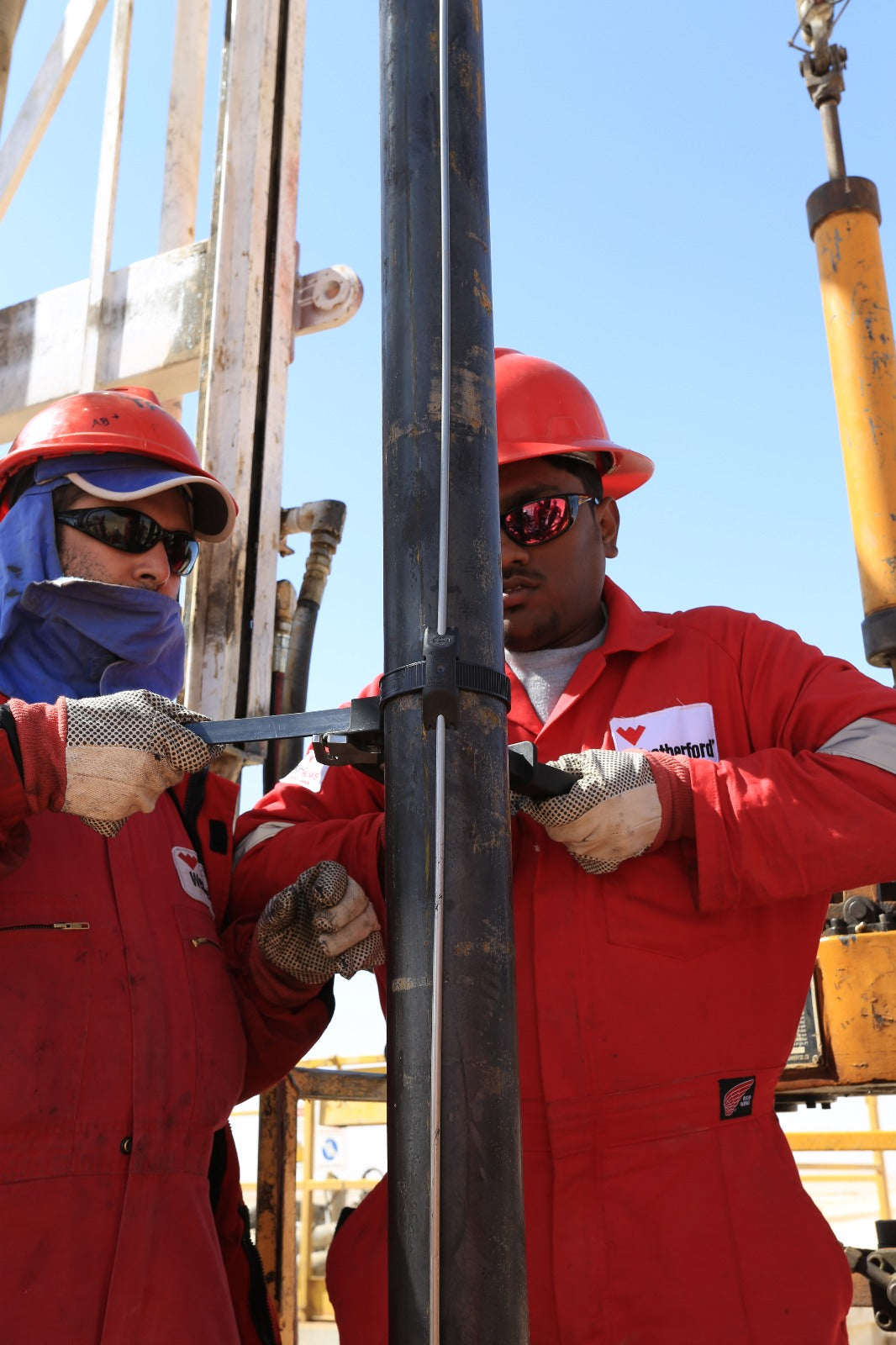

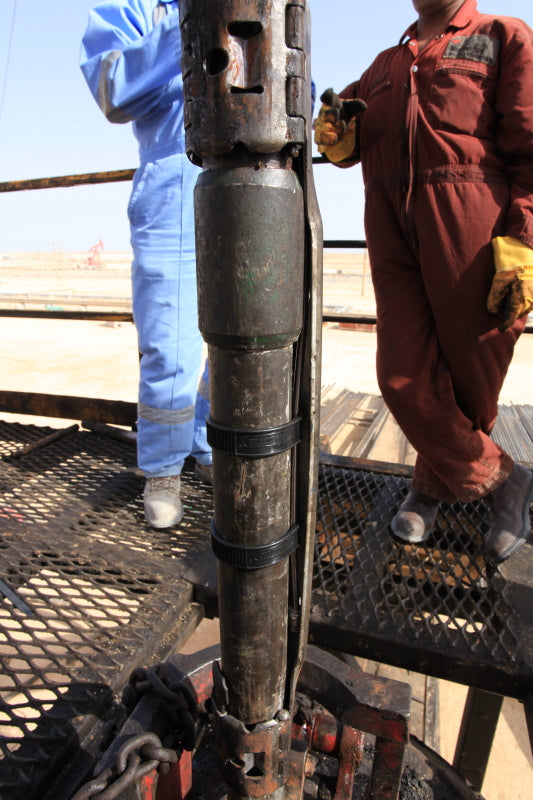

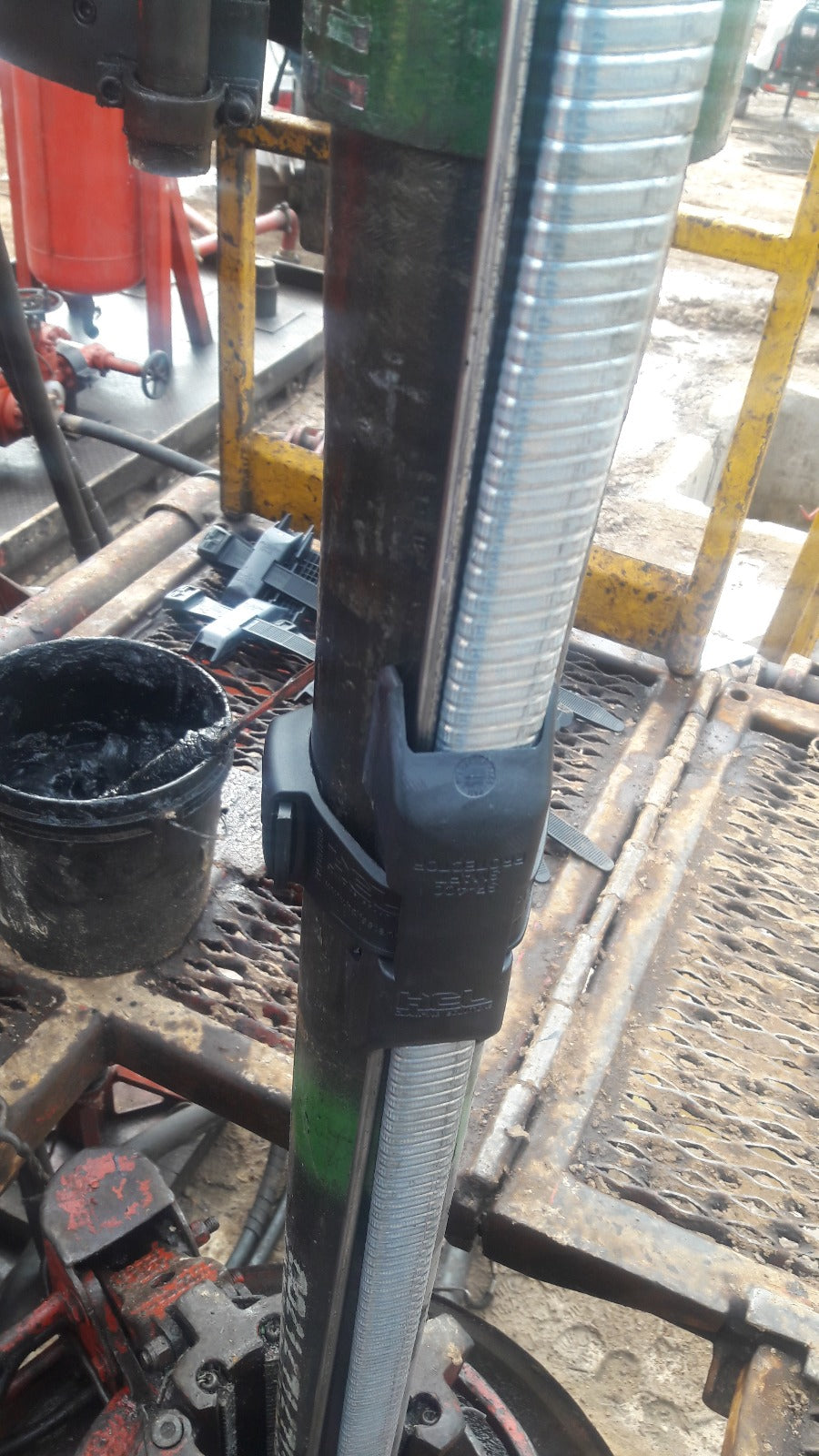

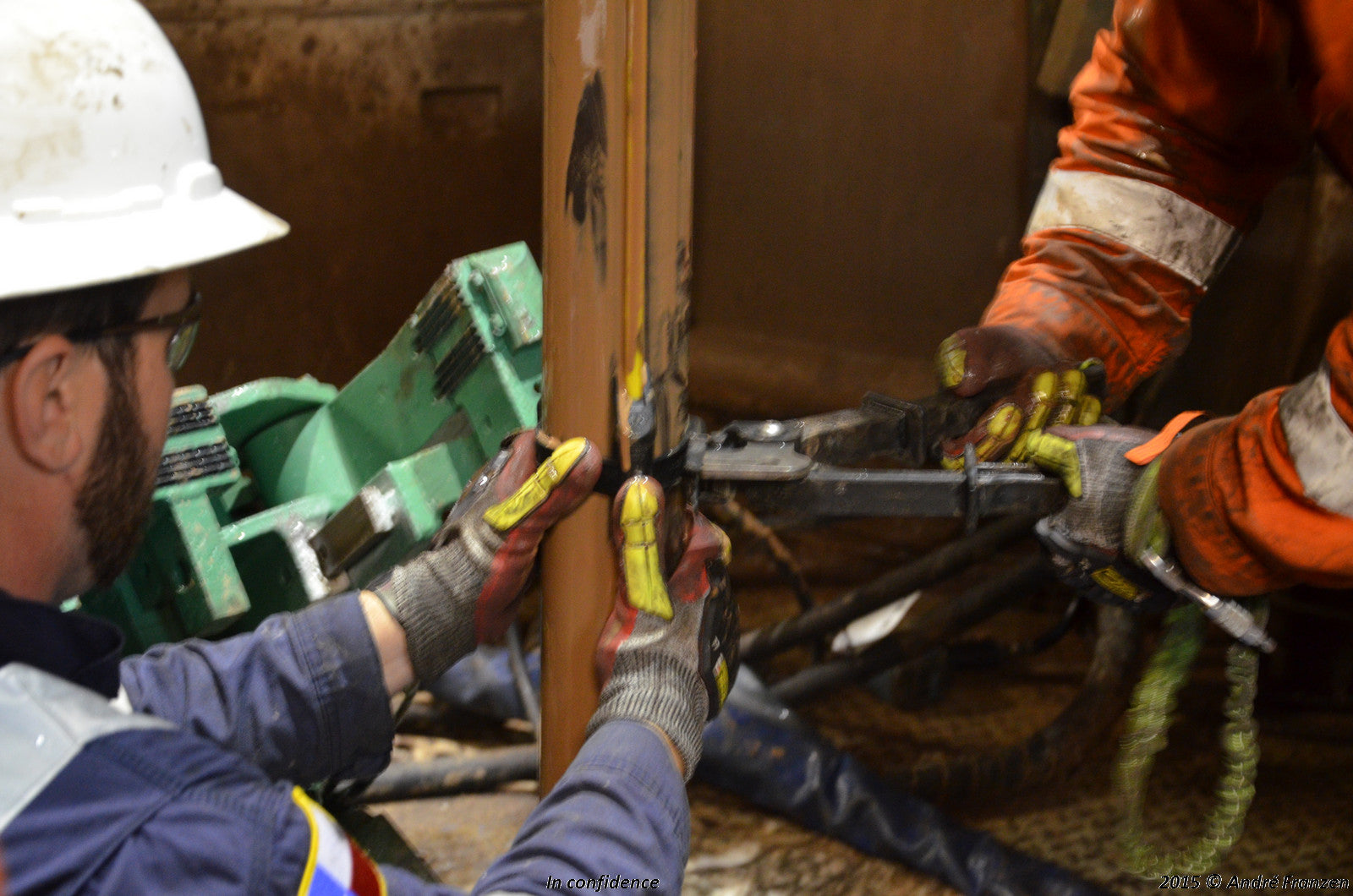

The Smart® Protector is a patented product developed in co-operation with Shell. It is designed to operate within restricted annular clearances, to accommodate various tubing diameters, all coupling types and most cable combinations.

The Smart® Protector is not only used as a cable protector downhole it can be used to protect & attach cables in many other situations in conjunction with either the Smart® Band or Smart® Tie. One of the most successful applications is the attachment of Cathodic protection cables to Marine structures.

Cable Configuration

  • Cable 11 or 2 x 11.0mm Square/round encapsulated lines
  • Cable 21 or 2 x 1/4" Control Lines

Product Specifications

  • Protector Height mm - inch27.9 - 1.1
  • Protector Length mm - inch159.0 - 6.28
  • Protector Width mm - inch46.2 - 1.82
  • Rotational Load kgf -lbf50.0 - 110.0
  • Crush Load kgf -lbf2000.0 - 4400.0
  • Max Temp Resistance °C - °F100 - 212
  • Flammability RatingHB
  • Tie Material PA12
  • BrandHCL
  • Country of Manufacture UK
  • Hazardous GoodsNo
  • RoHS CompliantYes

Features

  • Fits any tubing diameter or coupling length

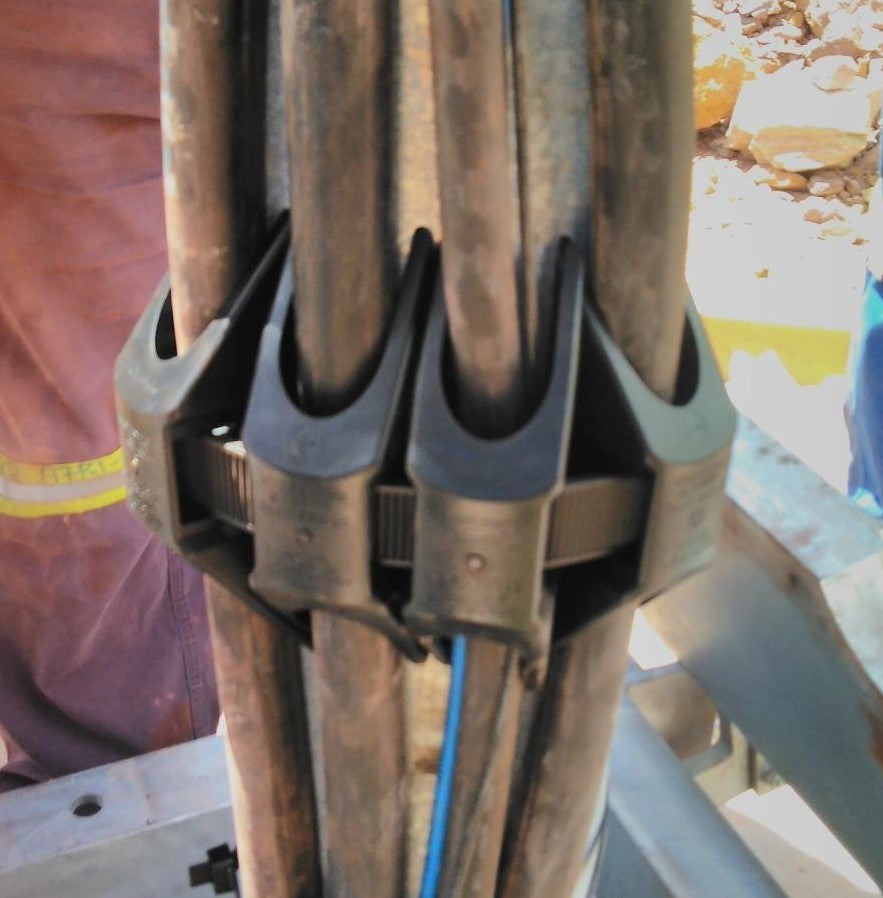

  • Can be used for multi-line installations
  • Prevents cable snagging
  • Non-Corrosive
