HCLHCL 5033717001331
SKU: SP-500-3338-PPS

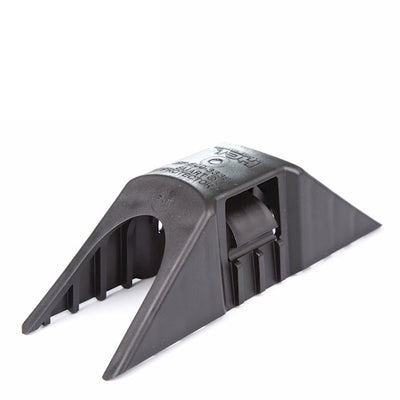

Smart Protector 500-3338 - Cable Protector & Holder - PPS


Price:
£18.25 + VAT
Stock:
664 items in stock

Description

A range of polymer cable protectors for use in Downhole, subsea and flow line applications.

The Smart® Protector is a patented product developed in co-operation with Shell. It is designed to operate within restricted annular clearances, to accommodate various tubing diameters, all coupling types and most cable combinations.

The Smart® Protector is not only used as a cable protector downhole it can be used to protect & attach cables in many other situations in conjunction with either the Smart® Band or Smart® Tie. One of the most successful applications is the attachment of Cathodic protection cables to Marine structures.

Cable Configuration

  • Cable 1Round ESP Cables & other cables ranging from 32mm to 38mm Diameter

Product Specifications

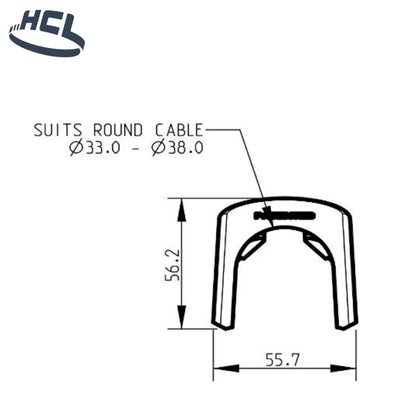

  • Protector Height mm - inch56.2 - 2.19

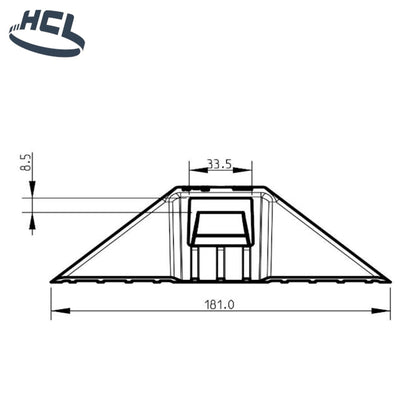

  • Protector Length mm - inch181.0 - 7.13
  • Protector Width mm - inch55.7 - 2.19
  • Rotational Load kgf -lbf50.0 - 110.0
  • Crush Load kgf -lbf2000.0 - 4400.0
  • Max Temp Resistance °C - °F175 - 347
  • Flammability RatingV-0
  • Tie Material PPS
  • BrandHCL
  • Country of Manufacture UK
  • Hazardous GoodsNo
  • RoHS CompliantYes

Features

  • Fits any tubing diameter or coupling length

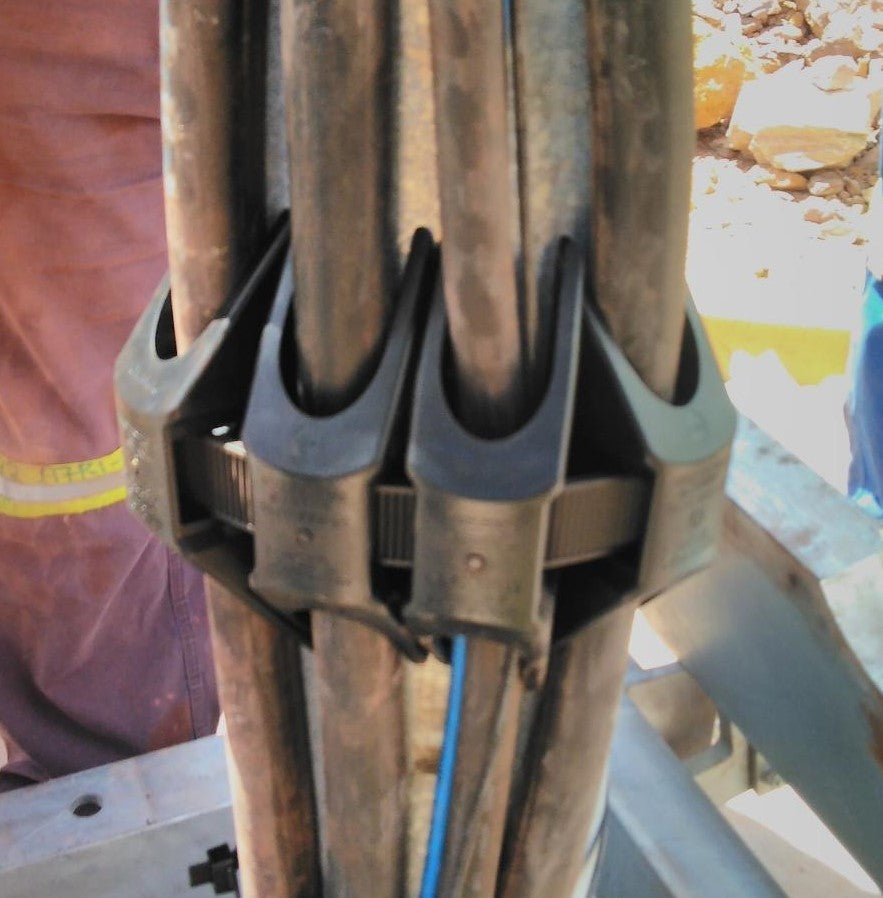

  • Can be used for multi-line installations
  • Prevents cable snagging
  • Non-Corrosive
