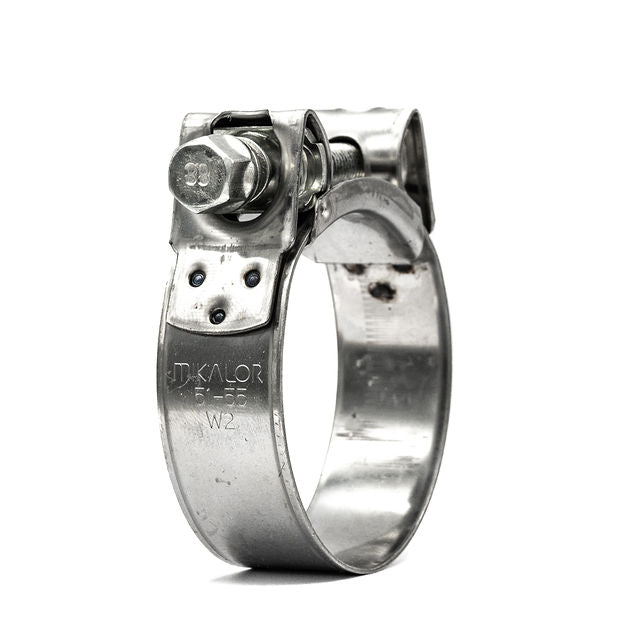

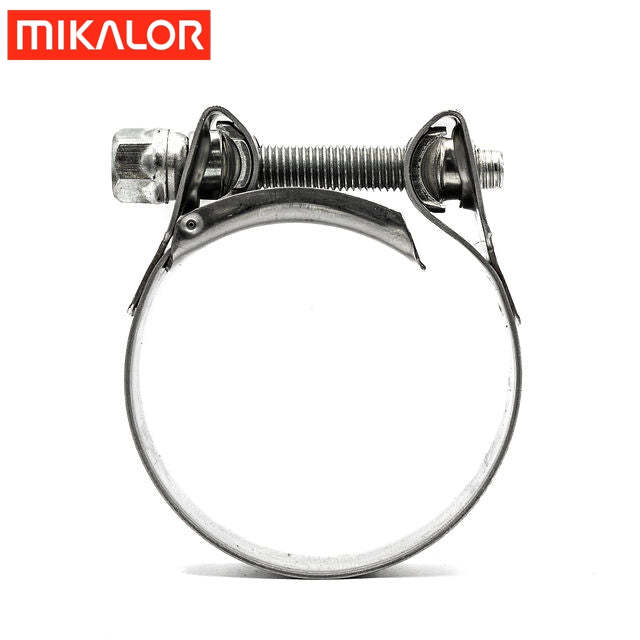

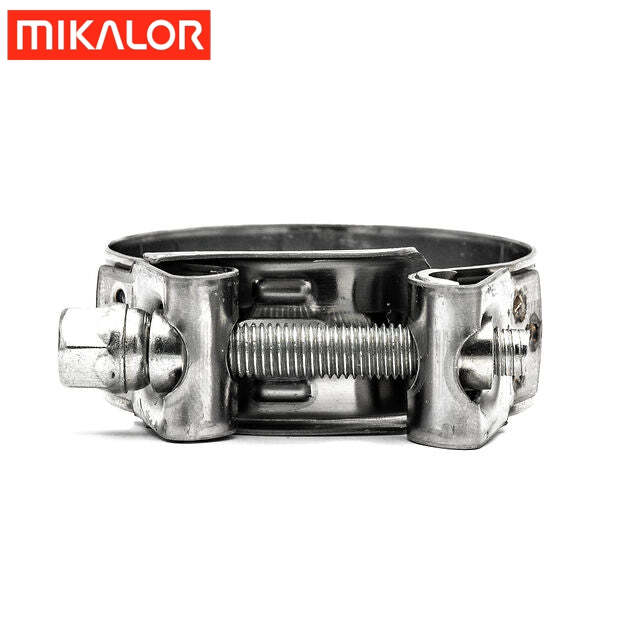

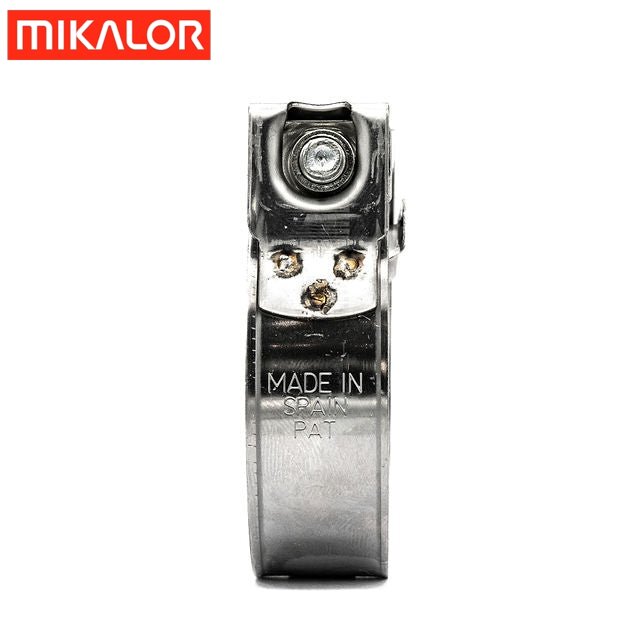

The Supra range is the natural evolution of the Super W1 Clamp. Due to its revolutionary swiveling bridge, Supra can be mounted in the most awkward applications without having to remove the hose. It can be opened and fastened again when in place without dislodging any other parts of the clamp, making assembly much easier. Thanks to the beveled edges, the hose is protected from damage.
- Diameter Range (A) mm21.0 - 23.0
- Diameter Range (A) inch0.83 - 0.91
- Band Width (B) mm - inch18.0 - 0.71
- Band Thickness (C) mm - inch0.6 - 0.024
- Maximum Torque Setting Nm10.0
- Maximum Pressure bars45.0
- Screw mm A/F8.0
- Band/Housing Material W2 430SS
- Screw Material W1 Mild Zinc Plated Steel
- Brand Supra
- Manufactured By Mikalor
- Country of ManufactureSpain
- Hazardous Goods No
- RoHS Compliant Yes
- Swivel Bridge enables mounting without having to remove Hose
- Beveled edges protect the hose from damage
- High Strength Bolt & nut/spacer system
- Proven brand recognised worldwide
