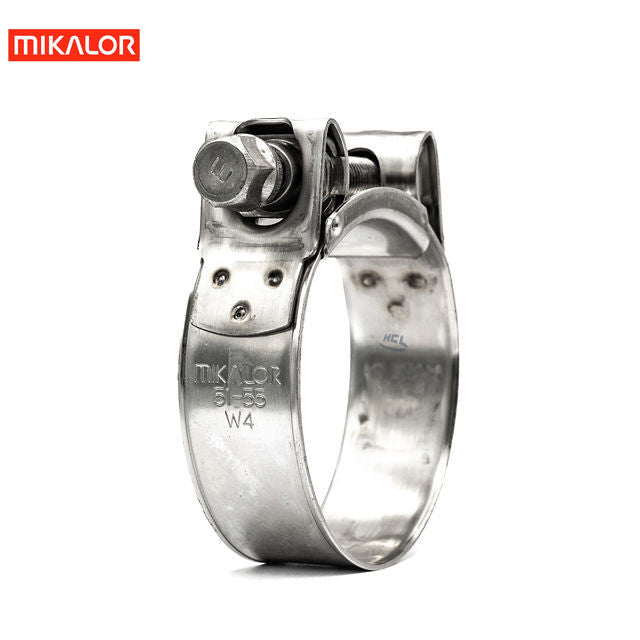

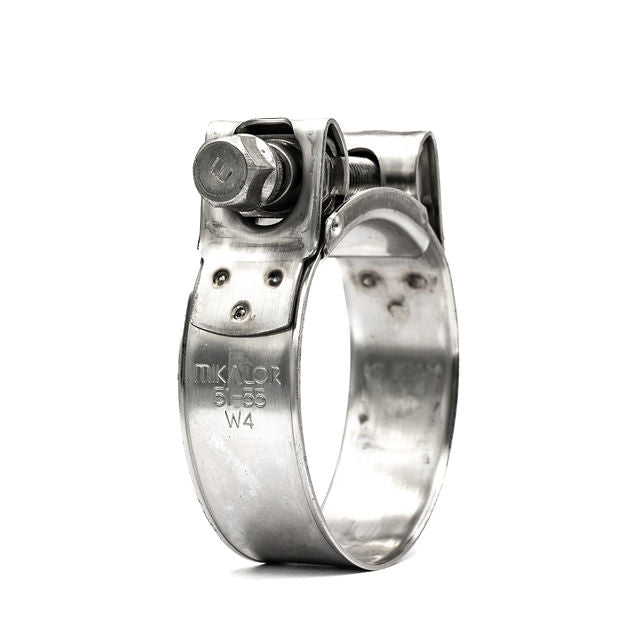

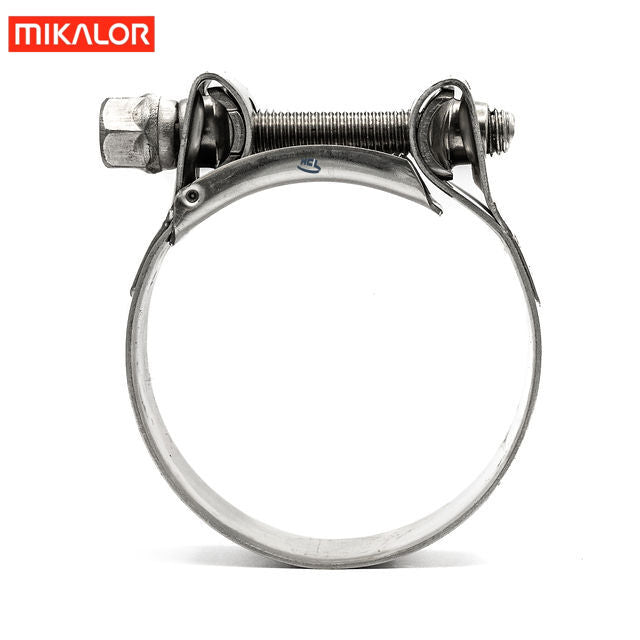

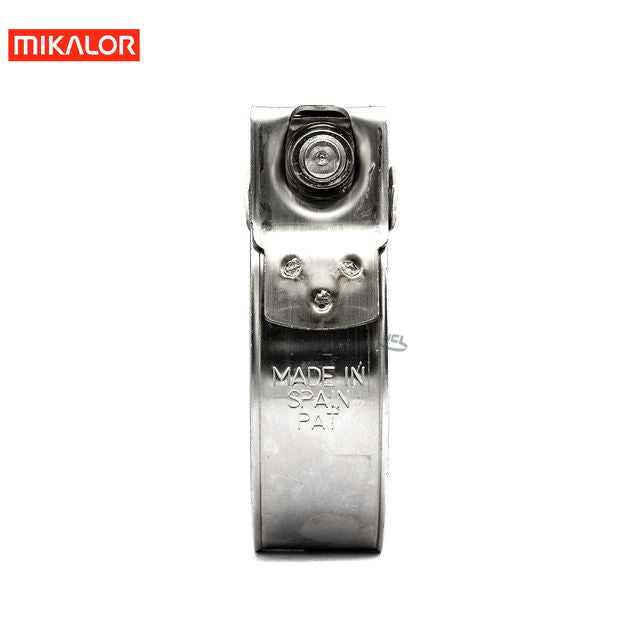

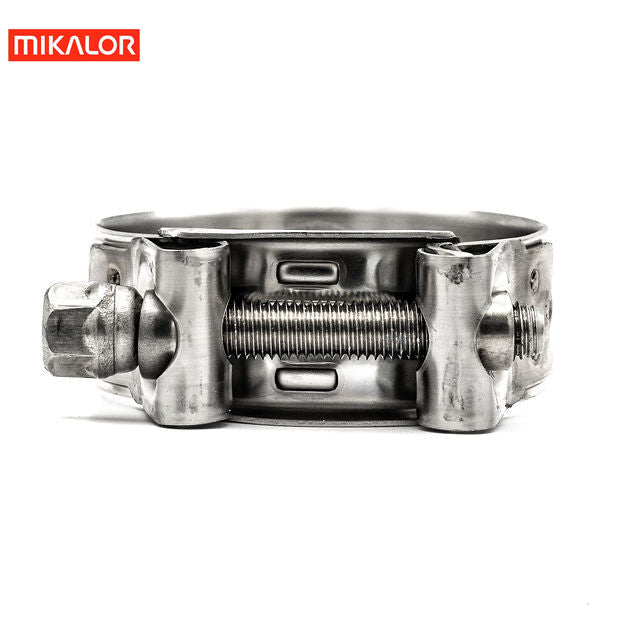

The Supra W4 clamp complies fully with the RoHs directive EU 20032/95/EC. The Stainless Steel bolt together with the captive nut and spacer system allow for clamping the most demanding of hose assemblies. Supra W4 is a full stainless steel clamp, designed for demanding applications where high corrosion resistance is vital.
- Diameter Range (A) mm21.0 - 23.0
- Diameter Range (A) inch0.83 - 0.91
- Band Width (B) mm - inch18.0 - 0.71
- Band Thickness (C) mm - inch0.6 - 0.024
- Maximum Torque Setting Nm10.0
- Maximum Pressure bars45.0
- Screw mm A/F8.0
- Band/Housing Material W4 304SS
- Screw Material W4 304SS
- Brand Supra
- Manufactured By Mikalor
- Country of ManufactureSpain
- Hazardous Goods No
- RoHS Compliant Yes
- Swivel Bridge enables mounting without having to remove Hose
- Beveled edges protect the hose from damage
- High Strength Bol & nut/spacer system
- Proven brand recognised worldwide
