Description

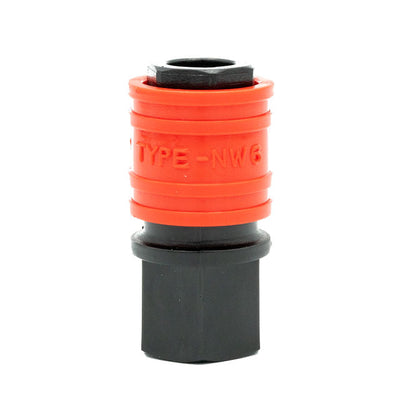

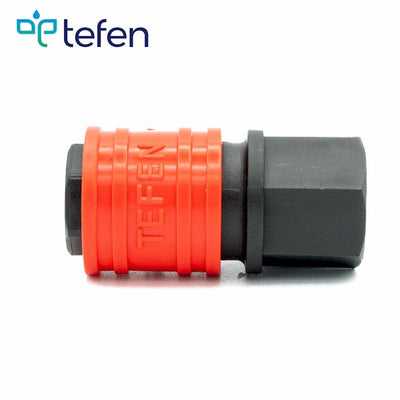

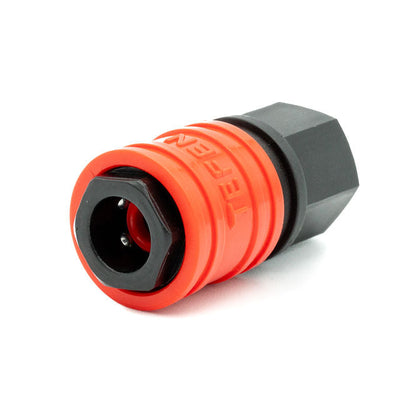

The special quick connector from Tefen offers a fast and reliable push to connect mechanism. The outer sleeve locks the plug into the socket. When the plug is disconnected, the socket acts as a shut-off valve. A variety of plugs can be connected and used, suitable for hydraulic or pneumatic systems.
Downloads
Product Specifications
- Female (F) BSPT inch 1/4
- Length (L) mm 44.0
- O-ring Material EPDM
- Internal Parts Material POM
- Spring & Ball Material Stainless Steel
- Spanner Width (SW) 19
- Internal Parts Colour Black
- Body Colour Red
- Working Pressure14 Bar/200 PSI (@20°C)
- Min Temp °C4
- Max Temp °C90
- Material PA66
- Manufactured By Tefen
Features
- Strong and durable
- High impact resistance
- UV resistant
