MikalorMikalor
SKU: MIK-ASFA-L-W1-22

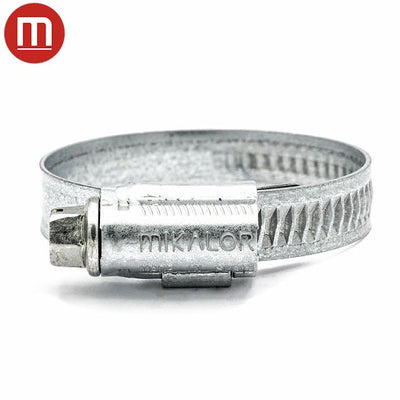

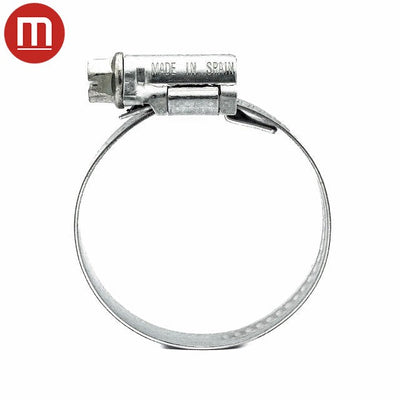

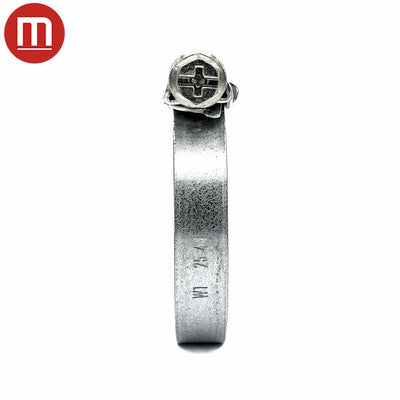

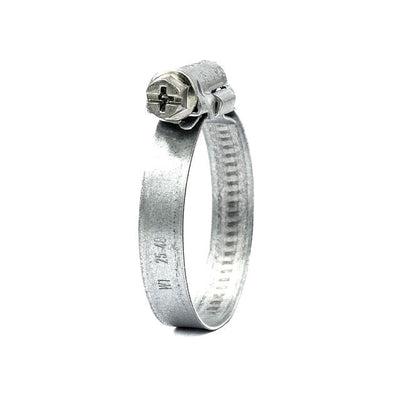

Mikalor ASFA L W1 Zinc Plated - Width 9mm Dia 12-22mm


Price:
€0,46 + VAT
Stock:
0 items in stock

Description

Thanks to the exclusive design of the housing and the high-strength screw, the ASFA LW1 Worm-Drive Clip has excellent performance while being at the same time very compact.

The cold-formed stamped 9mm band, smoothed on the underside, combined with the bevelled band edges protects the hose from any damage. DIN 3017. The ASFA LW1 hose clip complies fully with the DIN 3017 norm and also with the directive EU 2002/95/EC. This clip is ideal for general industrial applications.

* The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling

Video

Product Specifications

  • Diameter Range (A) mm12.0 - 22.0
  • Diameter Range (A) inch0.47 - 0.87
  • Band Width (B) mm - inch9.0 - 0.35
  • Band Thickness (C) mm - inch0.65 - 0.026
  • Max Head Width mm - inch14.0 - 0.552
  • Band/Housing Material Zinc Plated Steel
  • Bolt Material Zinc Plated Steel
  • Max Torque (Nm) - 3
  • Max Torque (Bars) - 40
  • Manufactured By Mikalor
  • Hazardous Goods No
  • RoHS Compliant Yes

Features

  • Exclusive Housing Design
  • Compact
  • Bevelled Band Edges
