Description

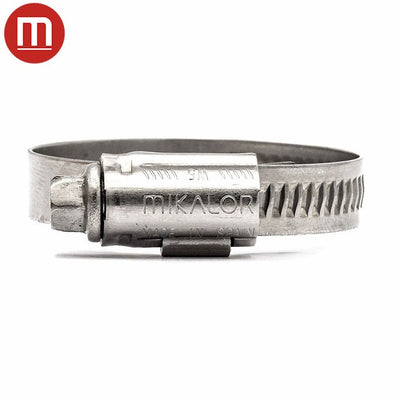

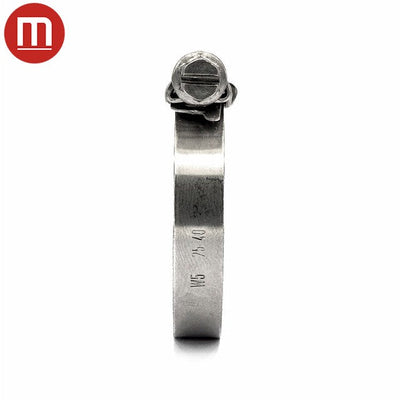

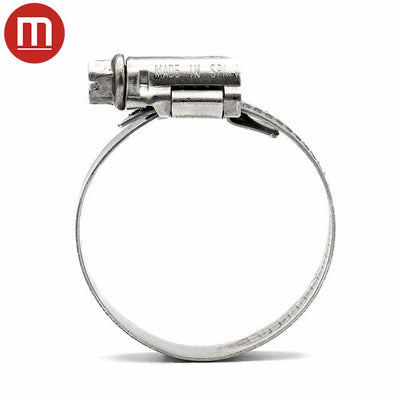

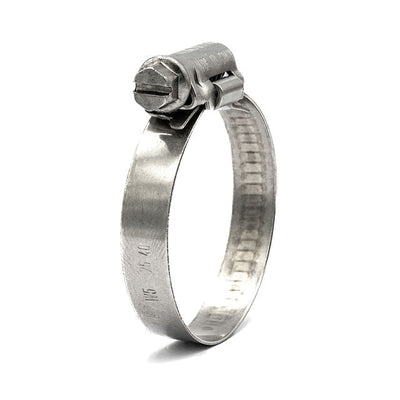

Manufactured entirely in AISI 316 Stainless Steel, the ASFA LW5 is ideal for use in highly corrosive environments. It is a very popular clamp in regions with high salinity, moisture, rain or snow.
The cold-formed stamped 9mm band, smoothed on the underside, combined with the bevelled band edges protects the hose from any damage. This clamp is especially indicated for use in the in the pulp and paper, maritime and foodstuffs industries.
DIN 3017. The ASFA LW5 hose clip complies fully with the DIN 3017 norm and also with the directive EU 2002/95/EC.
* The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling
Video
Downloads
Product Specifications
- Diameter Range (A) mm32.0 - 50.0
- Diameter Range (A) inch1.26 - 1.97
- Band Width (B) mm - inch9.0 - 0.35
- Band Thickness (C) mm - inch0.75 - 0.030
- Max Head Width mm - inch14.0 - 0.552
- Band/Housing Material 316SS W5
- Bolt Material 316SS W5
- Max Torque (Nm) - 4
- Max Torque (Bars) - 24
- Manufactured By Mikalor
- Hazardous Goods No
- RoHS Compliant Yes
Features
- Ideal clamp for highly corrosive environments
